CRP-RS10-20Z40
Describe
FUNCTIONAL FEATURES
  • Unique high rigidity arm design, fast running speed, high transmission accuracy, low noise.

  • Available in 1000mm arm lengths with a maximum payload of 20kg.

  • A safety emergency stop board independent of the control system is configured, and a safety relay is used to provide double-circuit emergency stop to ensure the reliability of emergency stop.

  • Equipped with G12 control cabinet, providing 24-way custom IO; Supports serial port, network port, USB and other interfaces.

  • The body cable adopts the special cable for flexible robot. Built-in three-phase filter, effectively improve EMC and EMI performance, with gravity compensation, load adaptive, and S-T function, higher accuracy, less impact, typical working conditions faster beat.

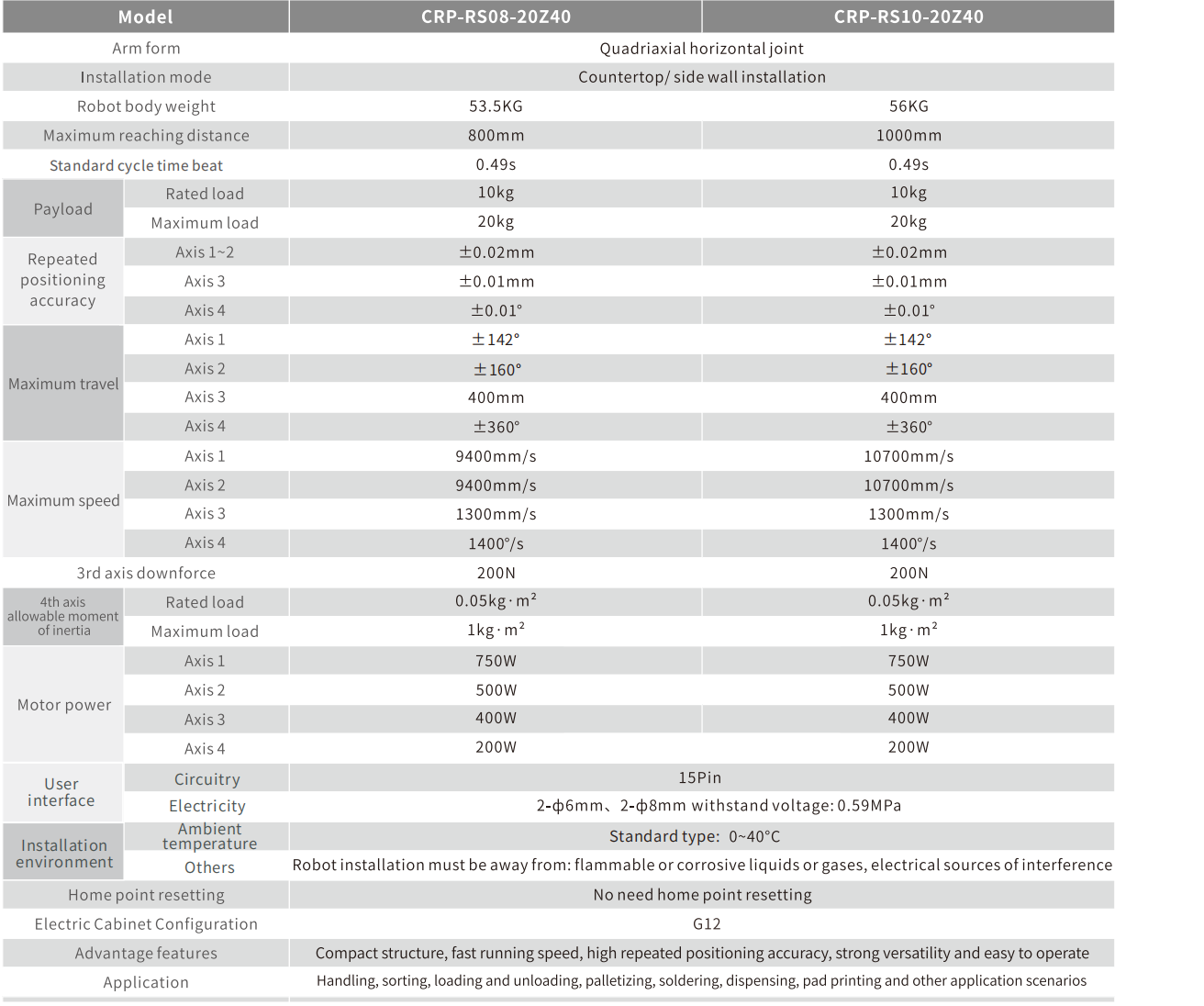

ROBOT BODY TECHNICAL PARAMETERS

INSTALLATION INTERFACE DIAGRAM

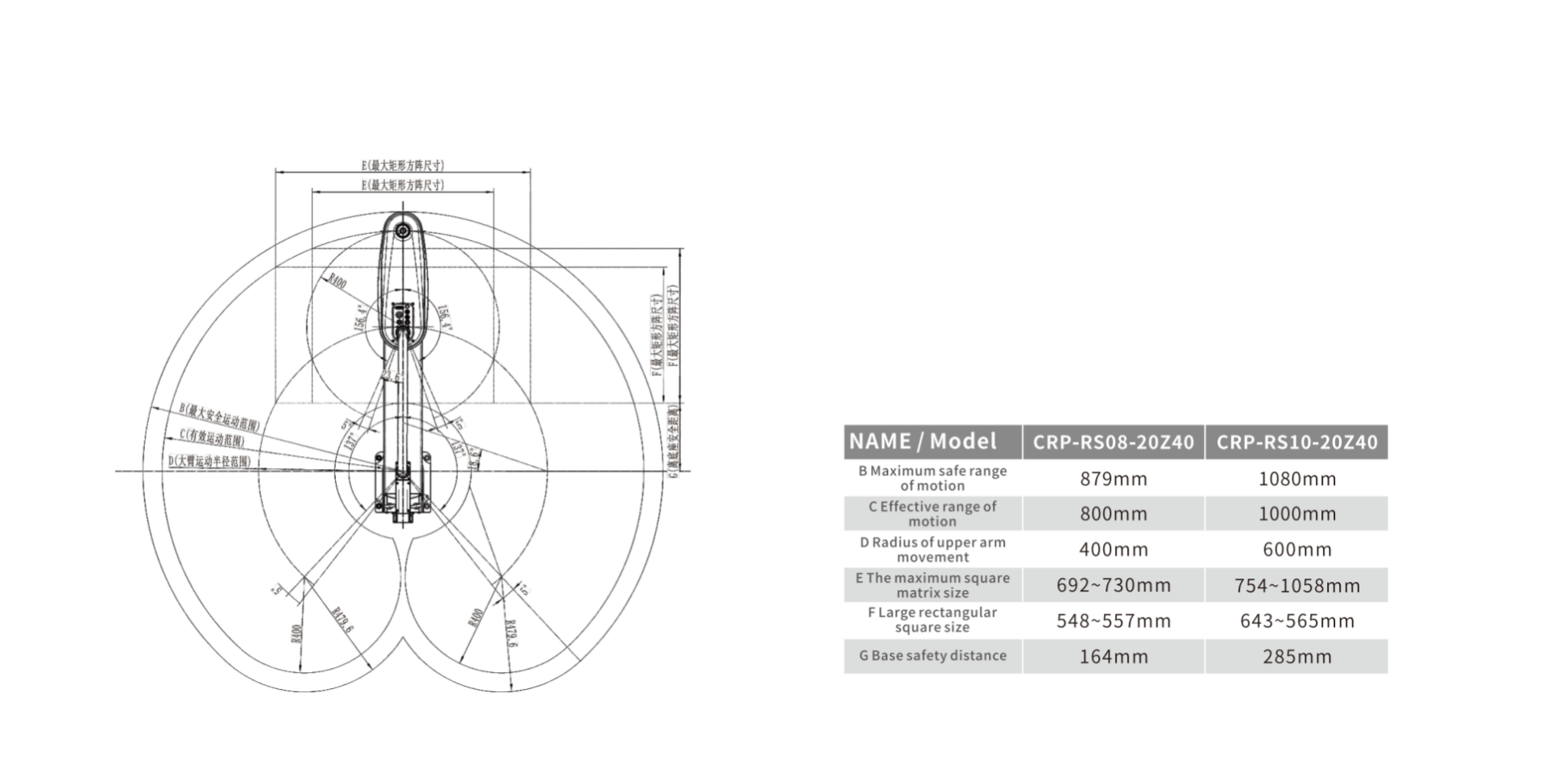

運(yùn)動(dòng)范圍圖
