CRP-RA26-220
Describe
FUNCTIONAL FEATURES
  • With a reach of 2.65 meters, high rigidity,strong load bearing capacity, and smoother operation,it represents an improvement of about 2% compared to the previous generation.

  • The load capacity is 220kg, an improvement of about 5% compared to the previous generation.

  • The motor is built into the arm, giving a clean appearance and makingit suitable for working inconfined spaces, with more flexible movement.

  • Using high-speed, high-overload capacity servo motors, high-precious RV reduces, and the latest anti-vibration control strategies, the pitch operation time is shortened.

  • The entire machine installation occupies less space, enabling high-density installation and wiring, and supports collaborative operation of multiple units.

  • The robot has a simple structure, a user-friendly operation interface, and is easy to maintain.

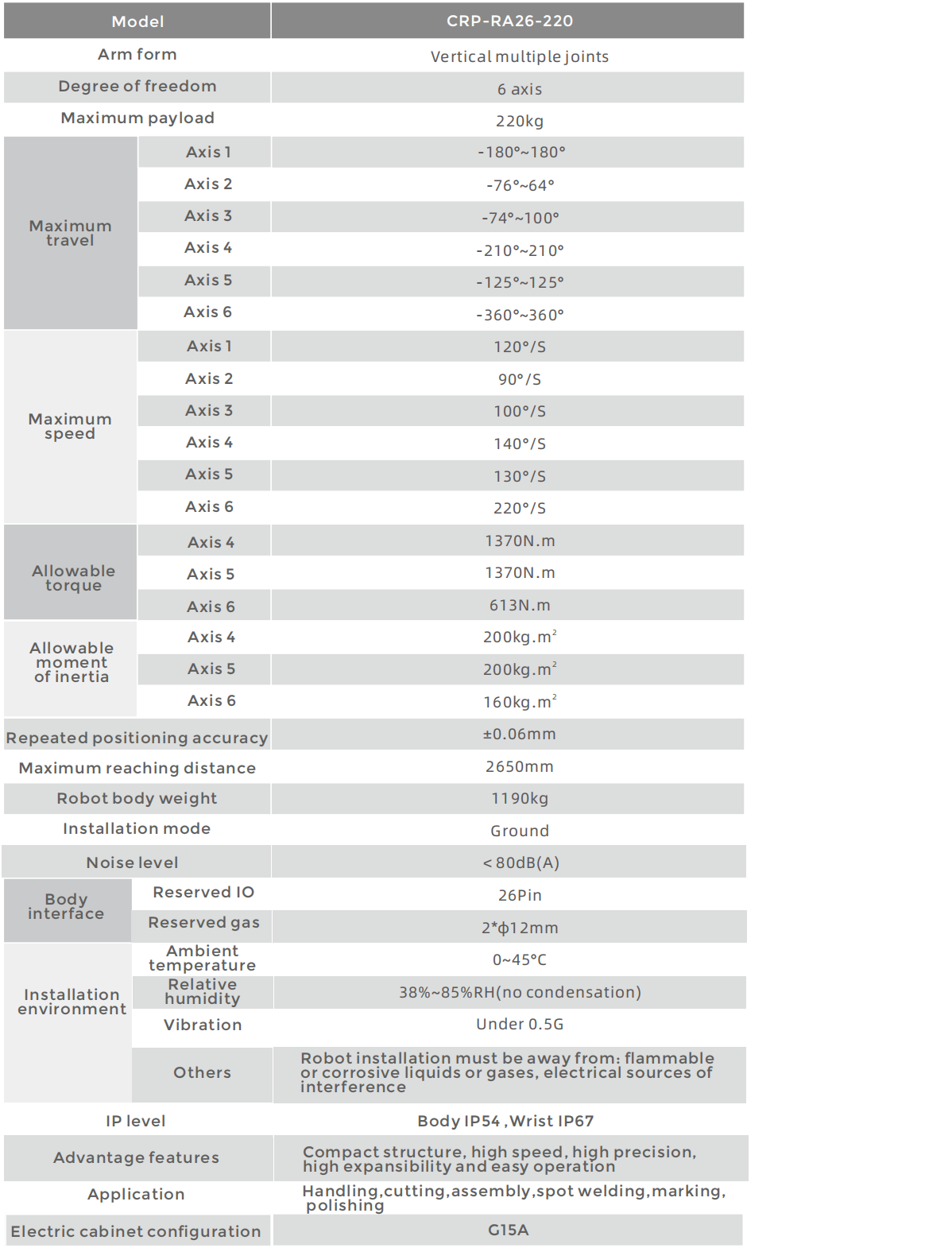

ROBOT BODY TECHNICAL PARAMETERS

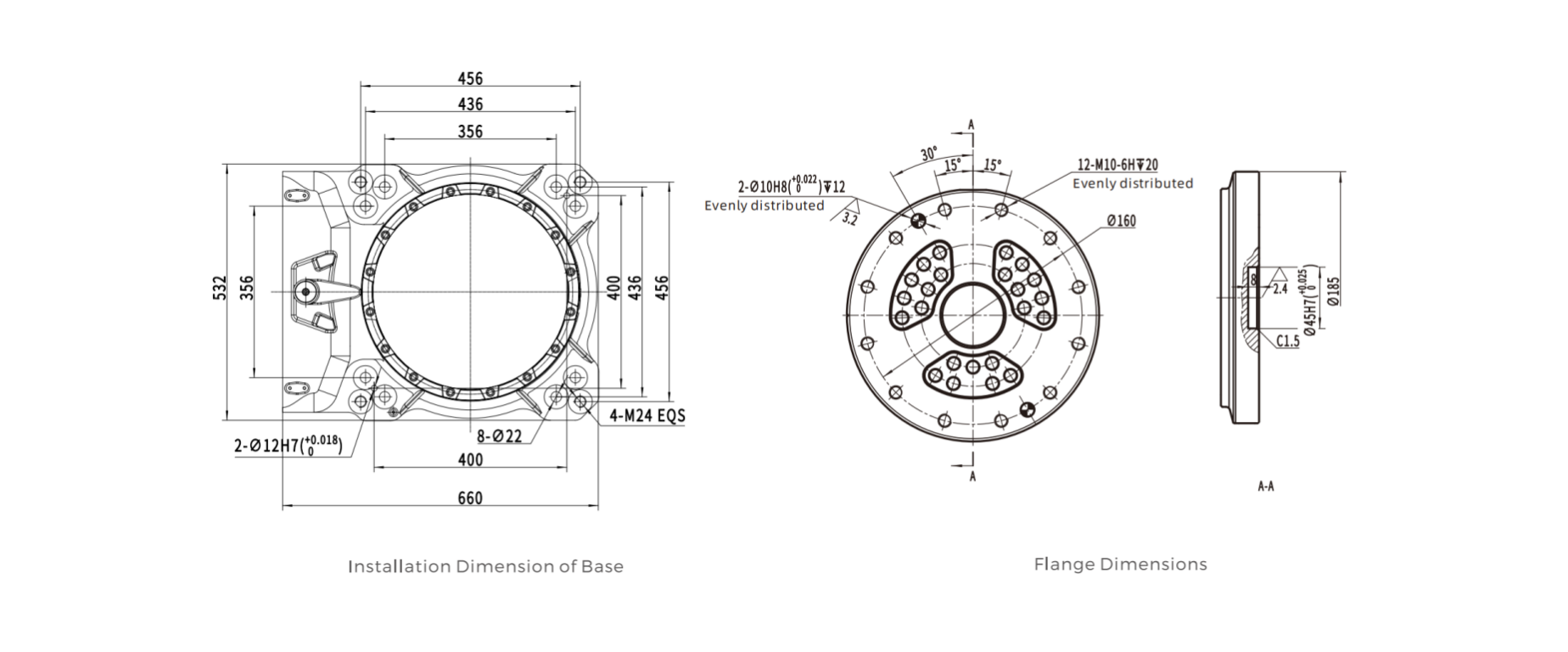

INSTALLATION INTERFACE DIAGRAM

MOTION RANGE DIAGRAM
