CRP-RP32-180
Describe
FUNCTIONAL FEATURES
  • Equipped with safety emergency stop board which is independent of the control system, and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop.

  • The main cable adopts a flexible robot specific cable.

  • Equipped with a three-phase filter, effectively improving EMC and EMI performance.

  • Equipped with gravity compensation, load adaptation, and S-T function, the whole machine has higher accuracy, smaller impact, and faster typical working cycle. Adopting parallel spring cylinders, it occupies a smaller area, consumes less power, and has smoother control.

  • Dual channel large-diameter trachea, meeting the requirements of high load vacuum suction cups.

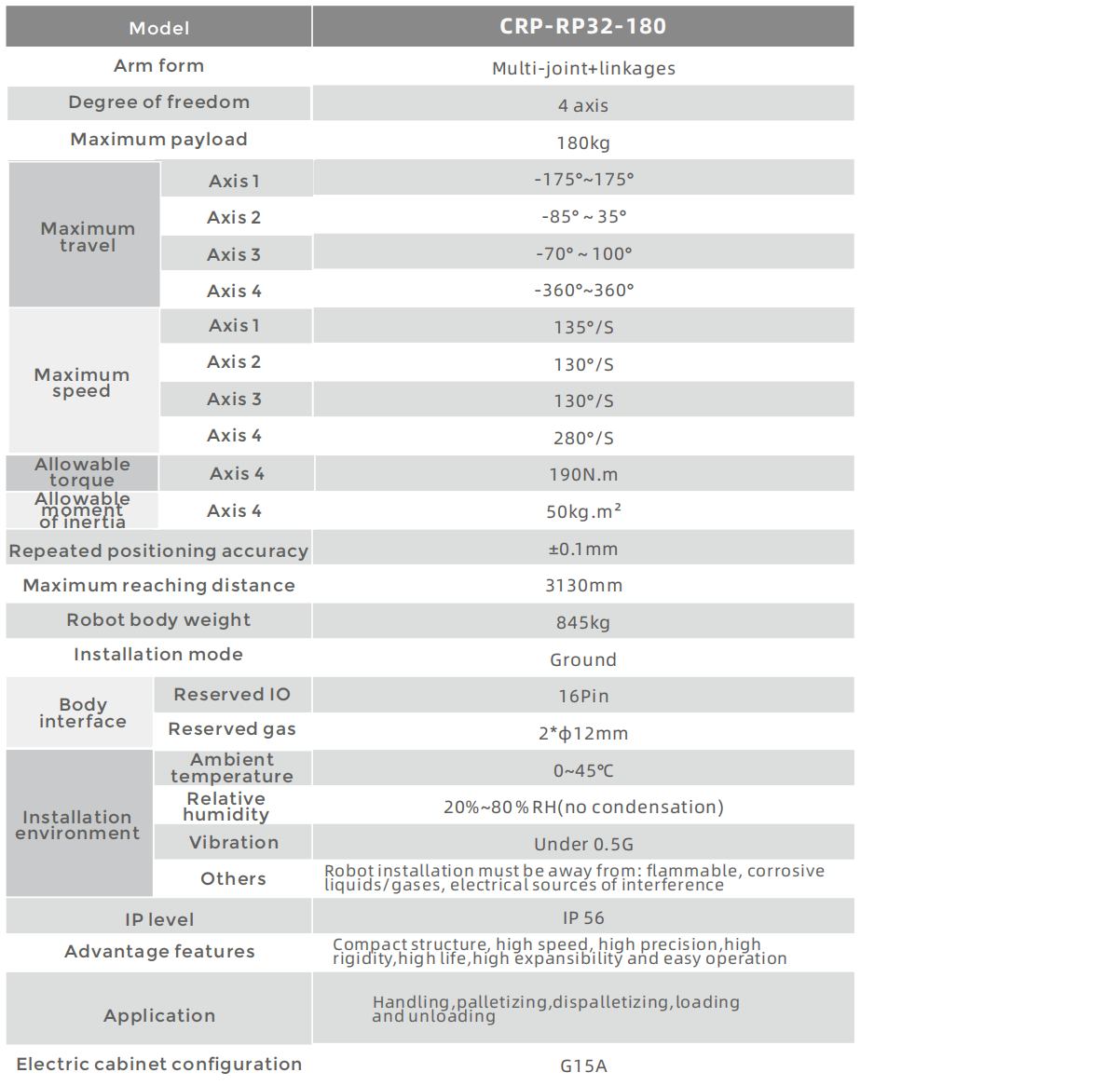

ROBOT BODY TECHNICAL PARAMETERS

INSTALLATION INTERFACE DIAGRAM

MOTION RANGE DIAGRAM
